BAFFI TP 16

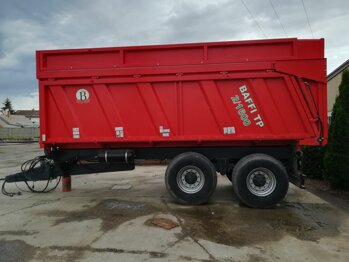

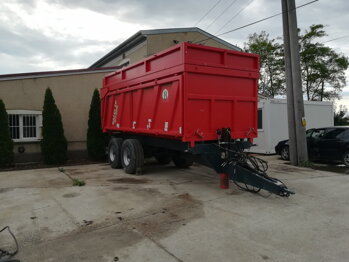

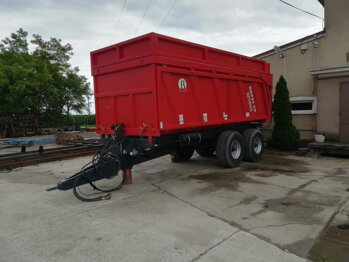

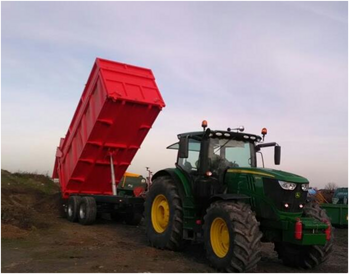

DESCRIPTION + ILLUSTRATION PHOTO

• Double-acting brake system
• Emergency brake
• Central locking
• Parabolic springs
• Brake cylinders - 2 pcs for each axle
• Wheels 445/65 R22,5
• Hydraulic support foot
• Electroinstalation – 12V
• Folding cylinder with safety valve to stop oil flow
• Small rear window
• Ladder
• Electrical, hydraulical and pneumatic output for another trailer
• Safety triangle
• Standard colour: grey - red
• Base thickness: 4 mm, walls thickness: 2,5 mm
• Closed frame profil
• Length of loading area: 6 040 mm
• Width of loading area: 2 200 mm
• Height of side wall: 800 + 600/800mm
• Height of loading area: 1 600 mm
• Capacity standard/extended:  m3
• Total length: 8 240 mm
• Total width: 2 550 mm
• Towing eye: 50 mm
• Rear bumper
• Chain inside the tank
• Wedges: 2 pcs
• Speed: 25-40km/h
• Required power: 140 HP
• Payload: 16 000 kg
• Total weight: 18 000 kg
• Height of the chassis: 1 200 mm
• Unladen weight: 7 840 kg
• Hydraullically adjustable and helium-sprung drawbar
• Possible towing eye K80
